- Place of Origin: SHENZHEN
- Brand Name: LEYOND

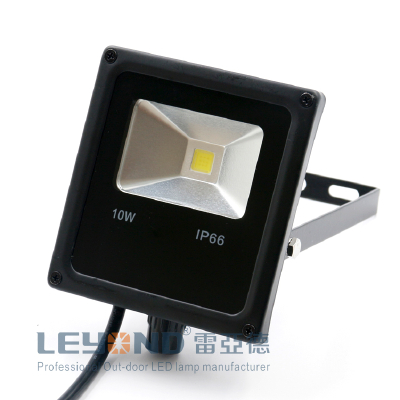

- Model Number: 10W SlimLine
• Uniquely designed with plug&play PIR socket.The slim body with proffesional designed heat sink make this products very porpular in the market.
• Multi-Chip on Lead Frame, Single Module LED Package Design
• System Design Integrating Power Supply, LED Light Engine, and Heat Sink
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures (Specification Re-Defined Accordingly)
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR
Installation:
• The entire series of LED flood light are designed with wide range voltage, the voltage range is 85~264 volts, the frequency is 50/60Hz.
• Installation tool: A adjustable wrench group.
Installation Steps:
• 1.Tighten Axle Screw, and Locate Screw
• 2.Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure.
The installation notices
• 1.No necessary using other devices for LED Flood light installation such as stabilizer, regulator and so on.
• 2.Opening the light and lifting the buckle is unallowable. Soaking in the water is unallowable.
Warning:
• Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: 10W SlimLine
| Optical | |
| LED Luminance | >900lm |
| Light Fixture Luminance | >700lm |
| CCT | 6500±500K |
| CRI | >70 |
| LED Package | Multi-chip on Lead Frame,Single Module |
| Electrical | |
| Input Voltage | 100~240V AC, 50/60Hz |
| Power Consumption | ≦10.5W (of Total System) |
| Power Factor | ≧0.9 |
| Power Efficiency | >89% |
| EMI Grade | EMI Class B |
| Protection | Over Current/Over Voltage/Thunder Protection |
| Luminance Efficacy | >70lm/W |
| Mechanical and System | |
| IP Level | IP65 |
| Dimension | 120 X 220 X 45 mm |
| Net Weight | 0.5 Kg |
| Heat Solution | Convection |
