- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: 120W CREE COB
• Cree COB LED Chip inside,High light output>90Lm/W,High CRI>80;
• Patent DIMLTM Lens,high efficiency>92%,Anti-glare Diamond quality;
• Absolutely unique mold, make your lighting special and fantastic;
• World Top class LED driver Inside,PF>0.9
• Advanced thermal management technology.
• Over Current,Over Voltage,Over Heat,Thunder Protection
• 5 Years warranty , leave no worries about quality, enjoy the qualified green life.
• Operational condition: Temperature -40℃~60℃
• Humidity 10%~90%RH
Quality Warranty
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Pathway lighting ,Park Lighting,Signboard Lighting, Special for 10-20m work shop.
- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: 120W CREE COB
Par NO Parameter | LY-HB40100XX | LY-HB40120XX | LY-HB40150XX | LY-HB40180XX |
Inptut voltage | AC85V~265V 50/60HZ | |||
Sysem consumption(W) | 105 | 125 | 155 | 185 |
Luminous flux(lm) | 8000-9000 | 11500-12000 | 13500-14000 | 16000-16500 |
LED quantity(pcs) | CREE2520 (COB) | CREE2530 (COB) | CREE2540 (COB) | CREE3050 (COB) |
Beam Angle | 38°/60°/90° | 38°/60°/90° | 38°/60°/90° | 38°/60°/90° |
CRI | >80 | |||
Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k | |||
Driver | External power supply | |||
Luminous efficiency(lm/w) | >90 | |||
Lifespan(hrs) | >50000 | |||
IP Rating | IP41 | |||
Dimmable | YES&NO | YES&NO | YES&NO | YES&NO |

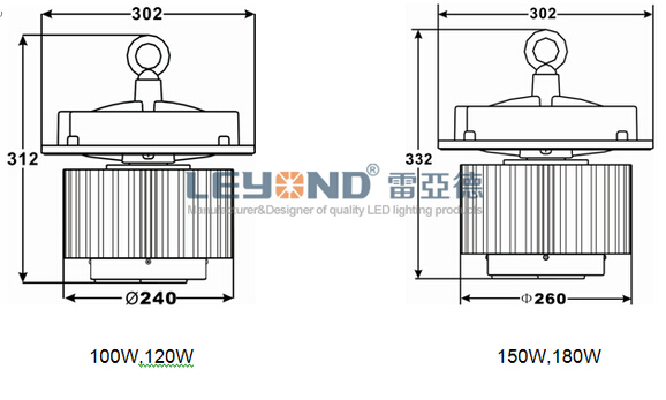

Size(mm) | Φ302x312 | Φ302x312 | Φ302x332 | Φ302x332 |
Net Weigh(kg) | 5.45 | 5.45 | 6.52 | 6.52 |
Package Size(mm) | 322x322x362 | 322x322x362 | 322x322x362 | 322x322x362 |
Package Quantity(Pcs) | 2 | 2 | 2 | 2 |
Packing(mm) | 665x340x380 | 665x340x380 | 665x340x380 | 665x340x380 |
Gross Weigh(kg) | 14 | 14 | 16 | 16 |
