Product Details
- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: 15W*2 Square Down Light D
• Cree COB LED Chip inside,High light output>100Lm/W,High CRI>80;
• Patent DIWL® Lens,Anti-glare Diamond quality;
• Absolutely unique mold, make your lighting special and fantastic;
• World Top class LED driver-Meanwell Types Inside;
• 3 Years warranty , leave no worries about quality, enjoy the qualified green life.
• Operational condition: Temperature -40℃～60℃
Humidity 10%～90%RH
| Par NO/Parameter | LY-CL1224XX | LY-CL1230XX | LY-CL1236XX |
| Inptut voltage | AC85V～265V 50/60HZ | ||
| Sysem consumption(W) | 12*2 | 15*2 | 18*2 |
| Luminous flux(lm) | 2200-2400 | 2700-3000 | 3600-4000 |
| LED quantity(pcs) | CREE1507 (COB) | CREE1512 (COB) | CREE1512 (COB) |
| Beam Angle | 10°/24°/38°/60°/90° | 10°/24°/38°/60°/90° | 10°/24°/38°/60°/90° |
| CRI | ＞80 | ||
| Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k | ||
| Meterial | Aluminum PMMA | ||
| Driver | External power supply | ||
| Luminous efficiency(lm/w) | ＞90 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP30 | ||
| Size of holes(mm) | length:170-180MM Width85-95MM | length:170-180MM Width85-95MM | length:170-180MM Width85-95MM |

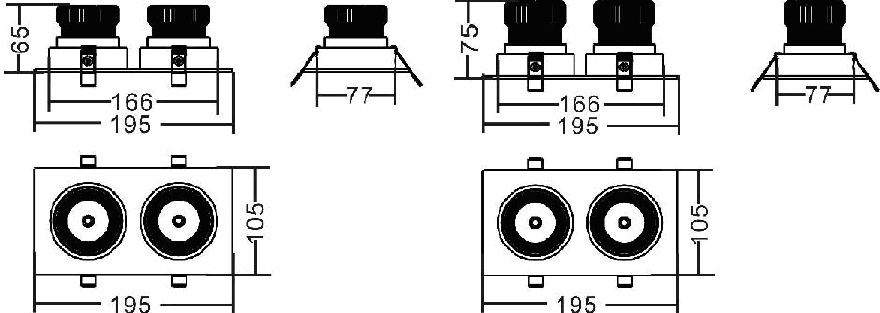

| Downlight Size(mm) | φ195x105x65 | φ195x105x75 | φ195x105x85 |
Net Weigh(kg) | 0.85 | 0.9 | 0.95 |
Package Size (White Box)(mm) | 198×130×115 | 198×130×115 | 198×130×115 |
| Package Quantity(Pcs) | 20 | 20 | 20 |
| Packing(MM) | 42.5x68x26 | 42.5x68x26 | 42.5x68x26 |
| Gross Weigh(kg) | 18.5 | 19.5 | 20.5 |
