- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: 18W*3 Square Down Light D
• Cree COB LED Chip inside,High light output>100Lm/W,High CRI>80;
• Patent DIWL® Lens,Anti-glare Diamond quality;
• Absolutely unique mold, make your lighting special and fantastic;
• World Top class LED driver-Meanwell Types Inside;
• 3 Years warranty , leave no worries about quality, enjoy the qualified green life.
• Operational condition: Temperature -40℃～60℃
Humidity 10%～90%RH
| Par NO/Parameter | LY-CL1236XX | LY-CL1245XX | LY-CL1254XX |
| Inptut voltage | AC85V～265V 50/60HZ | ||
| Sysem consumption(W) | 12x3 | 15x3 | 18x3 |
| Luminous flux(lm) | 3200-3500 | 4000-4300 | 5100-5400 |
| LED quantity(pcs) | CREE1507 (COB) | CREE1512 (COB) | CREE1512 (COB) |
| Beam Angle | 10°/24°/38°/60°/90° | 10°/24°/38°/60°/90° | 10°/24°/38°/60°/90° |
| CRI | ＞80 | ||
| Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k | ||
| Meterial | Aluminum PMMA | ||
| Driver | External power supply | ||
| Luminous efficiency(lm/w) | ＞90 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP30 | ||

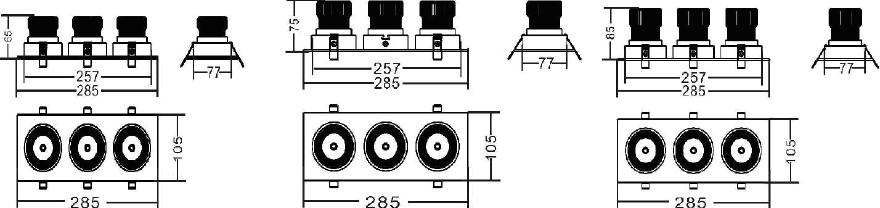

| Size of holes(mm) | Length:360-275MM Width85-95MM | Length:260-275MM Width85-95MM | Length:260-275MM Width85-95MM |
| Downlight Size(mm) | φ285x105x65 | φ285x105x75 | φ285x105x85 |
Net Weigh(kg) | 1.22 | 1.25 | 1.28 |
Package Size (White Box)(mm) | 290×130×115 | 290×130×115 | 290×130×115 |
| Package Quantity(Pcs) | 10 | 10 | 10 |
| Packing(MM) | 61x68x14 | 61x68x14 | 61x68x14 |
| Gross Weigh(kg) | 14.5 | 15 | 15.5 |
It can totally replace fluorescent lamp, applications in various areas of lighting. Such as hotels,bars, supermarkets, restaurants, museums, exhibition halls, Conference room, shops,warehouses, home lighting and other place.
