- Place of Origin: SHENZHEN
- Brand Name: LEYOND

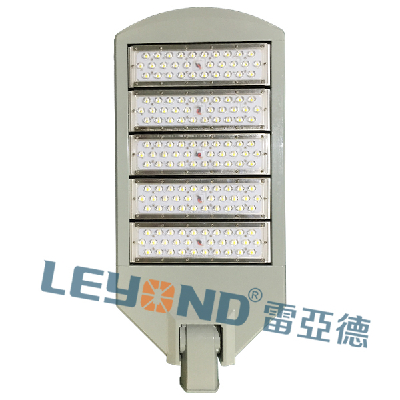

- Model Number: 250W Five Modular Street
• high quality power supply, input voltage 100-277V. The power efficiency is morethan 90%, power factor greater than 0.98, UL compulsory certification.
• Adopting Lepower led light sources and ZAG lens technology, 8% lightefficiency higher than the same type lights in the market, with higher lighttransmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure goodheat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the followingmaintenance cost.
• Low energy consumption，matching high efficiency constant-current driver, 60%energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of theproducts.
• Durable lights with long life span up to 50000 hours; No need frequentreplacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, nomercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.
• 2pcs 1W chips are packaged in one led, which ensure high stability andalso reduce the death rate of the leds.
| Module Quantity | Dimension of Lights (L*328*98) | Net Weight |
| 5 | 739*328*98mm | 9.6kg |
Specification：
Electrical Specifications
| Product Model | Module Quantity | Power | Input Voltage/Frequency | Input Current | Power Factor | Efficiency of the Driver |
| LY-SL12250 | 5 | 250W | AC90~305V 50/60Hz | 4A/115VAC | >0.98/115VAC >0.95/230VAC | >93% |
Optical Specifications：
| Product Model | Module Quantity | Power | Luminous Flux | Light efficiency | CRI | CCT | Lens Degree |
| LY-SL12250 | 5 | 250W | 31000LM | 124lm/W | >50 >60 >70 | 2800-3000K 3000-3500K 4000-4500K 5000-5500K 6000-6500K | 150°x70° |
Mechanical Specifications：
| Module Quantity | Package Size | The gross weight/Carton | IP | Life Span | Material of Housing |
| 5 | 800*388*168mm | 11.2kg | IP66 | 50000hs | Aluminum alloy PC |
• Operation Ambient Temperature -40 to 50°C, Relative Humidity 20~90%
• Input Voltage 85~265V AC, 50/60Hz
• Storage Ambient Temperature -40 to 85°C, Relative Humidity 10~90%
• Mounting Height : Suitable for 5~10m height
Warning
• Please handle the product with care whenopen the package.
• Do Not Open the Light Engine
• Do Not Soak the Floodlight into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
• If the new LED down light is found damaged, please keep the originalpackage and contact us.
• In order to ensure the product work properly, please use the powersupply within indicating voltage range.
• Lamps shall be installed and maintained by a qualified electrician.
