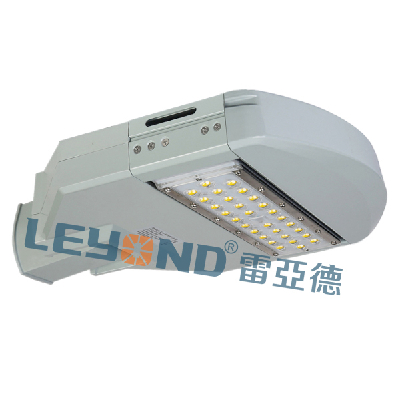

50W Single Modular Street Light

50W Single Modular Street Light

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Week
  • Port: SHENZHEN
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2013-04-16
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  SHENZHEN
  • Brand Name:  LEYOND
  • Model Number:  50W Single Modular

• high quality power supply, input voltage 100-277V. The power efficiency is morethan 90%, power factor greater than 0.98, UL compulsory certification.
• Adopting Lepower led light sources and ZAG lens technology, 8% lightefficiency higher than the same type lights in the market, with higher lighttransmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure goodheat dissipation, lower luminous decay, and also extend life span of the leds.Adopting the popular CHEM modular design, effectively reduce the followingmaintenance cost.
• Low energy consumption
matching high efficiency constant-current driver, 60%energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of theproducts.
• Durable lights with long life span up to 50000 hours; No need frequentreplacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, nomercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response
A wide range of working voltage.
• 2pcs 1W chips are packaged in one led, which ensure high stability andalso reduce the death rate of the leds.

Warning:

Do Not Use Other Devices for LED high bay light Installation Such as Stabilizer, Regulator …etc

Do Not Open the Light Engine

Do Not Soak the high bay light into Water

Do Not Light up the System Without Grounding

Do Not Use Dimmer

Module  QuantityDimension  of Lights  (L*328*98)Net  Weight
1399*328*98mm5.3kg


Specification:
Electrical Specifications

Product ModelModule  QuantityPowerInput  Voltage/FrequencyInput  CurrentPower  FactorEfficiency  of the Driver
LY-SL11050150W

AC90~305V

50/60Hz
0.64A/115VAC

>0.98/115VAC

>0.95/230VAC
>93%


Optical Specifications:

Product  ModelModule  QuantityPowerLuminous  FluxLight  efficiencyCRICCTLens  Degree
LY-SL11050150W6500LM130lm/W

>45

>60

>65

2800-3000K

3000-3500K

4000-4500K

5000-5500K

150°x70°


Mechanical Specifications:

Module  QuantityPackage  SizeThe  gross weight/CartonIPLife  SpanMaterial of Housing
1460*388*168mm6.5kgIP6650000hsAluminum alloy PC


  • Place of Origin:  SHENZHEN
  • Brand Name:  LEYOND
  • Model Number:  50W Single Modular



Module  QuantityDimension  of Lights  (L*328*98)Net  Weight
1399*328*98mm5.3kg


Specification:
Electrical Specifications

Product ModelModule  QuantityPowerInput  Voltage/FrequencyInput  CurrentPower  FactorEfficiency  of the Driver
LY-SL11050150W

AC90~305V

50/60Hz
0.64A/115VAC

>0.98/115VAC

>0.95/230VAC
>93%


Optical Specifications:

Product  ModelModule  QuantityPowerLuminous  FluxLight  efficiencyCRICCTLens  Degree
LY-SL11050150W6500LM130lm/W

>45

>60

>65

2800-3000K

3000-3500K

4000-4500K

5000-5500K

150°x70°


Mechanical Specifications:

Module  QuantityPackage  SizeThe  gross weight/CartonIPLife  SpanMaterial of Housing
1460*388*168mm6.5kgIP6650000hsAluminum alloy PC
