- Place of Origin: SHENZHEN

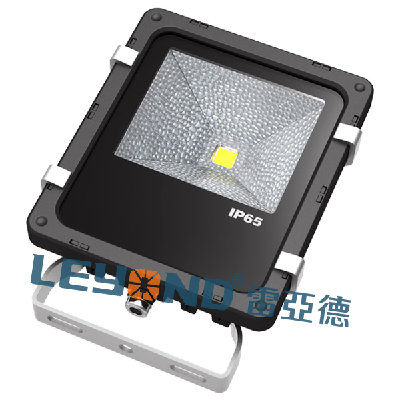

- Brand Name: LEYOND
- Model Number: ASA
Features
• Full waterproof design
• High transmittance empered glass,transimittan 93%
• The radiating area 4260cm2
• Multi-Chip on lead frame,single module LED package design
• System design integrating power supply,LED light engine ,and heat sink
• Over Current,Over Voltage,Over Heat,Thunder Protection
• Choice of correlated color temperatures
• Long lifespan for LED 50,000 hrs
• Complying with CE、ROHS, No strobing during working, Fast response (no delay) , No
• mercury vapour ,No radiation,No UV,No damage with frequency switching
• IP Rating: IP65
• Power supply direct touch the radiator,in light weight
Installation:
Installation tool: A adjustable wrench group.
Installation Steps:
• Tighten Axle Screw, and Locate Screw
• Connecting the power line of LED Flood Light to the power supplier ,finish the installation procedure
The installation notices:
• No necessary using other devices for LED Flood light installation such as stabilizer,regulator and so on
• Opening the light and lifting the buckle is unallowable.Soaking in the water is unallowable
Warning:
Do Not Use Other Devices for LED Floodlight Installation Such as Stabilizer,Regulator …etc
Do Not Open the Light Engine
Do Not Soak the Floodlight into Water
Do Not Light up the System Without Grounding
Do Not Use Dimmer
Warranty:
2 Years Warranty Starts from Taking Delivery of Goods a Day. The Warranty Content
Includes the Damage of All Components, Such as LED Light Source and Power Supply...etc.
The Floodlight Must Operate at the Common Normal Environment. As in Order to be Faced by the Sea Road in 3 Kilometers or to Use in the Bad Environment Such as Tunnel, Warranty Period is Within 1 Year. The Calculation of Warranty Period with Turn on the Light for a Day 8-10 Hours is Limited. As Everyday Longer Than 10 Hours, Then Gradually Decrease According to Comparison Warranty Time Limit.
Attentions:
All data is under 25℃,unless otherwise specified
Package: 1 Set = 470mm×420mm×260mm 7.65Kg
1 Carton = 2 Set Size: 490mm×440mm×575mm 22.7Kg
- Place of Origin: SHENZHEN
- Brand Name: LEYOND
- Model Number: ASA
Input voltage | AC85V~265V,50/60HZ |
Power facor | ≥0.95 |
Power efficiency | >85% |
LED luminous efficiency | 90~100 lm/W |
CRI | >70 |
Beam angle | 120° |
Color Temperature | Warm white 2700-3200K Neutral white 4000-4500K Pure white 5000-6000K R/G/B/Other optional |
Operatinal condition | Temperature:-30℃~50℃ Humidity:10%-90%RH |
Housing Material | ASA |
Radiator | Copper Pipe Heat Sink Technology |
Model | dimension(mm) | Power consumption(W) | LED luminous flux | Average illuminance | Facula Area |

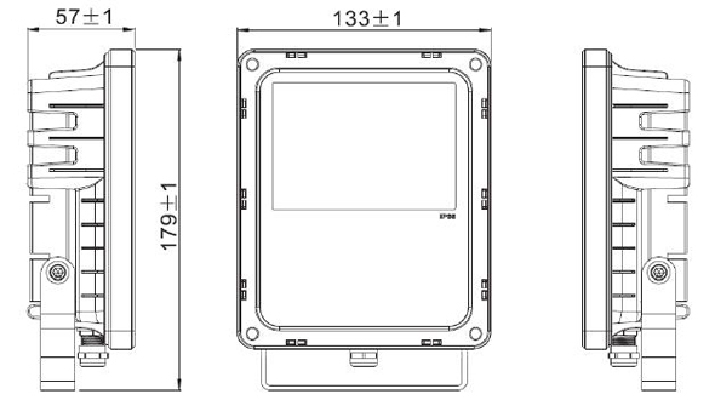

LY-FL 18010XX | L179xW133xH57 | 10 | 840-960 | 1M=75lux | 1M=3.5×3.5m 2M=6.5×6.5m 3M=9.5×9.5m |
